"Night Vision Goggles Conquering the Darkness: Photoelectric Effect"

I. Introduction

The darkness poses a natural obstacle for humans, as our eyes struggle to discern the surroundings in the absence of light. In contrast, some animals, such as cats, wolves, and owls, navigate the night with ease. What special structures or functions do their eyes possess? Can we create instruments that allow us to see in the dark as well?

The answer is yes. In the early 1960s, the first generation of low-light-level night vision goggles (L3 NVGs) was developed in the United States and officially equipped to troops, playing a crucial role in the Vietnam War [1]. When playing Call of Duty as a child, I remember pressing the 'N' key to activate the night vision goggles in certain missions set at night, revealing a green-tinged world. That was my first impression of night vision technology.

Figure 1: Another soldier wearing night vision goggles. Source: Wikipedia, Night Vision Device entry

Night vision goggles are devices designed to enhance vision in darkness. Based on their working principles and performance, they can be broadly classified into three categories: active infrared night vision goggles, low-light-level night vision goggles, and thermal imaging cameras. Active infrared night vision goggles, the earliest type, emit infrared light (e.g., from infrared lasers or lamps) to illuminate targets, which is then reflected and captured by an infrared receiver (like an infrared camera or glasses), converting the infrared light into visible images. While they are inexpensive and functional in complete darkness, they require additional infrared light sources, making them prone to detection and offering low-resolution, monochromatic images.

Low-light-level night vision goggles, the most common type, utilize an image intensifier to amplify ambient light (e.g., moonlight, starlight, city lights) thousands or even tens of thousands of times, enabling clear vision. They offer high-quality, colorful images without the need for external light sources, but are expensive, sensitive to strong light, and unusable in complete darkness. Thermal imaging cameras, on the other hand, convert infrared thermal radiation emitted by objects into visible images, enabling use in darkness and differentiation of temperatures. However, they are costly, offer low-resolution, monochromatic images, and cannot reveal fine details. This article explores low-light-level night vision goggles and the photoelectric effect behind them, unraveling how this technology conquers the darkness.

The development of low-light-level night vision goggles has progressed through several stages, from the initial Generation 0 to the current Generation 3, with significant improvements in performance and technology. Generation 1 goggles, developed in the 1950s and 1960s, amplify ambient light thousands of times using an image intensifier, enabling clear vision without additional light sources. They are compact, lightweight, and affordable but suffer from low image quality, low resolution, monochromatic output, and vulnerability to strong light. Used primarily by the militaries of the United States and the Soviet Union, they were mounted on rifles, pistols, and helmets [2].

Generation 2 goggles, introduced in the 1970s and 1980s, build upon Generation 1 with the addition of a microchannel plate (MCP), enhancing photon flow and significantly improving image clarity and brightness. They offer high-quality, colorful images resistant to strong light but remain expensive and dependent on ambient light, limiting their use in complete darkness. Employed by militaries in the United States and Europe, they were integrated into rifles, pistols, helmets, and binoculars. Generation 3 goggles, from the 1990s onwards, incorporate gallium arsenide photocathodes, significantly surpassing conventional photocathodes in sensitivity. They deliver exceptional image quality, resolution, and color reproduction, work in complete darkness, and boast long lifespans. However, their exorbitant cost and export restrictions limit their use primarily to select militaries, such as those of the United States and France, in rifles, pistols, helmets, binoculars, and scopes.

The fundamental principle of night vision goggles involves converting weak light in darkness (e.g., moonlight, starlight, infrared) into electrical signals, amplifying them, and then converting them back into visible light, revealing object contours and details in the dark. Figure 2 illustrates the basic structure of night vision goggles.

When weak light from the dark is focused by the objective lens and strikes the photomultiplier tube, a series of electrodes inside accelerate and multiply the light, ultimately hitting a fluorescent material at the exit end, converting the electrical signals into visible light and projecting an image on the phosphor screen. This image is monochrome since the photomultiplier tube amplifies light intensity but not color. Observers see the image through the ocular lens, discerning contours and details in the dark. Night vision goggles typically offer magnifications between 2x and 10x, fields of view from 30° to 60°, and effective observation distances from 100m to 500m, varying by model and specifications.

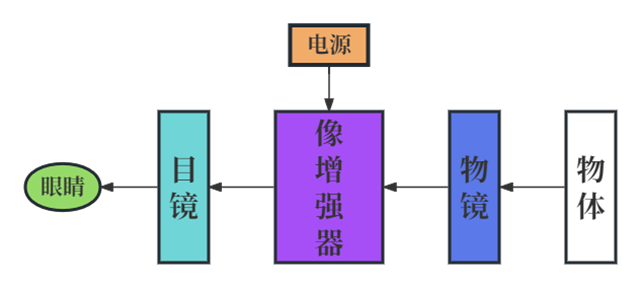

Figure 2: Structure of Night Vision Goggles

II. Photoelectric Effect

The core principle of image intensifiers is the external photoelectric effect. This phenomenon occurs when light strikes the surface of certain materials, causing electrons to be ejected from the surface, generating an electric current. First observed by German physicist Heinrich Hertz in 1887, who noted that ultraviolet light striking metal electrodes aided in spark generation, the phenomenon remained unexplained by contemporary physics. In 1905, Albert Einstein provided a theoretical framework, explaining that light consists of discrete energy packets called photons, whose energy is proportional to their frequency. This breakthrough not only explained the photoelectric effect but also laid the foundation for quantum mechanics.

When photons strike a material's surface, they collide with surface electrons, transferring energy. If the photon energy exceeds the electron's work function (the minimum energy required for electron ejection), the electron is expelled, generating a current. Figure 3 illustrates the external photoelectric effect.

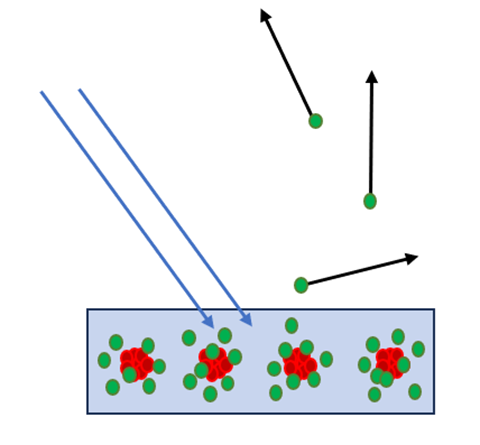

Figure 3: External Photoelectric Effect. Source: Wikipedia, Photoelectric Effect entry

Key Characteristics of the Photoelectric Effect:

1. Instantaneous: Current generation is immediate upon light exposure, requiring no delay.

2. Intensity-dependent: Current magnitude is proportional to light intensity; brighter light yields greater current due to more photons ejecting more electrons.

3. Frequency-independent for current generation: Current is generated if photon frequency exceeds the work function divided by Planck's constant, but photon frequency affects ejected electron energy, not quantity.

4. Energy proportional to frequency: Ejected electron energy is proportional to photon frequency, as electron energy equals photon energy minus the work function.

III. Image Intensifier

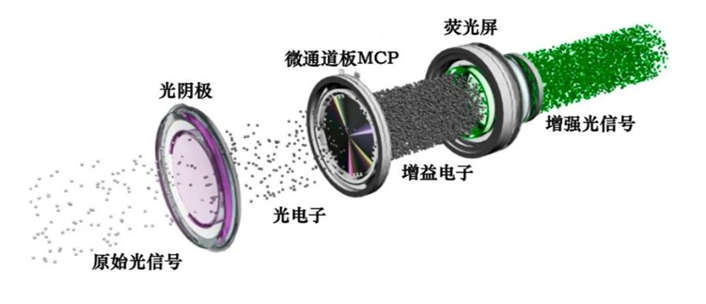

Figure 4: Principle of Image Intensifier. Source: bilibili @ Zhongzhi Scientific Instrument

An image intensifier contains a photocathode. Due to the external photoelectric effect, light striking the photocathode excites photoelectrons into the vacuum. As electrons traverse the tube, similar electrons are released from tube atoms. A microchannel plate (MCP), a tiny glass structure with millions of microchannels (fabricated using fiber optic technology), multiplies the original electron count by thousands. Each channel, approximately 45 times longer than wide, acts as an electron multiplier. When electrons from the photocathode hit the MCP's first electrode, they're accelerated by a 5000V pulse into the glass microchannels. Electron passage through these channels triggers secondary electron emissions in a cascade process known as cascade secondary emission, resulting in thousands of additional electrons per channel.

MCP channels are slightly angled (about 5° to 8° deviation) to encourage electron collisions and reduce direct optical feedback from ions and output-end phosphors. At the image intensifier's end, electrons strike a phosphor-coated screen, maintaining their positional relationship with the original photons, projecting a precise image. Electron energy excites the phosphor, releasing photons that create a green image on the screen [4].

IV. Advantages and Disadvantages of Low-Light-Level Night Vision Goggles

Advantages:

1. Enables seeing object contours and details in darkness, enhancing human vision and expanding activity range.

2. Utilizes ambient light, requiring no additional light sources, minimizing exposure and facilitating covert observation and reconnaissance.

3. Detects infrared radiation invisible to the naked eye, aiding in heat source detection (e.g., humans, animals, flames), uncovering hidden targets or dangers.

Disadvantages:

1. High cost, ranging from thousands to tens of thousands of dollars, limiting accessibility.

2. Heavy, weighing hundreds to thousands of grams, hindering portability.

3. Short lifespan, lasting hundreds to thousands of hours, necessitating periodic replacement or maintenance.

4. Limited image quality, offering only black-and-white images without color or fine textures/details.

5. Restricted use environments, unsuitable for daylight, strong light, rain, snow, fog, or low visibility conditions.

V. Conclusion

Night vision goggles harness the photoelectric effect to enhance vision in darkness, expanding human activity and facilitating scientific research, military operations, and outdoor adventures. However, they have drawbacks like high costs, weight, short lifespans, poor image quality, and limited use environments, necessitating continuous improvement. The photoelectric effect, the core principle of night vision goggles, exemplifies the interconversion between light and electricity, underpinning quantum physics and enhancing our scientific literacy.

References: [1] Wang, L., Shang, X., & Wang, Y. (2008). Development of low-light-level night vision goggles. Laser & Optoelectronics Progress, 3, 5. DOI:10.3788/LOP20084503.0056. [2] Zhou, L. (2004). Quality factor of low-light-level image intensifiers. Infrared and Laser Engineering, 4, 331-337. [3] Wu, J., & Wu, J. (2001). Principle, characteristics, and applications of photomultiplier tubes. Foreign Electronic Components & Technology, 8, 13-17. [4] Haque, M. J., & Muntjir, M. (2017). Night vision technology: An overview. International Journal of Computer Applications, 167(13), 8887-37. Note: Unmarked images are self-made.
