Upon the release of the iPhone 17 Pro, Apple made a decision that left many perplexed: it switched back to using an aluminum alloy for the frame, after having used titanium for two previous generations.

Titanium, renowned for its exceptional strength, luxurious feel, and the inherent high-end image associated with its name, was a major selling point that Apple heavily promoted with the iPhone 15 Pro.

On the other hand, aluminum alloy is often perceived as a cheaper option, prone to scratches, which might seem like a downgrade.

However, John Ternus, Apple's senior vice president of Hardware Engineering, addressed criticisms regarding the material regression by emphasizing that aluminum alloy offers undeniable benefits in terms of heat dissipation and weight management.

He clarified that the use of aluminum alloy is not a step backward.

01 Heat Dissipation: Custom Aluminum Alloy Outperforms Titanium by 20 Times

The primary factor influencing this decision is heat dissipation.

In 2026, flagship phones will be equipped with increasingly powerful chips, with on-device large language models, AI inference capabilities, and high-frame-rate games continuously pushing the boundaries of heat dissipation.

The iPhone 17 Pro's A19 Pro chip, paired with a VC (Vapor Chamber) heat sink, is designed to handle heat generation under heavy loads.

Image Source: Internet

However, if the frame itself has poor thermal conductivity, the heat transferred by the VC heat sink can become trapped at the device's edges, failing to dissipate effectively.

Apple employs a custom aluminum alloy with thermal conductivity 20 times greater than that of titanium. This means that for the same amount of heat, an aluminum frame can more rapidly distribute it across the entire device surface and release it into the air.

Although titanium is strong, its poor thermal conductivity effectively acts as a barrier to heat dissipation.

This is partly why iPhone 15 Pro and 16 Pro users reported overheating issues.

Apple is well aware of titanium's limitations in heat dissipation.

The iPhone Air continues to use titanium precisely because of its thinness. The ultra-thin design necessitates a material with higher strength to prevent bending, and heat dissipation issues can only be mitigated through alternative means.

By opting for aluminum alloy in the iPhone 17 Pro, Apple prioritizes heat dissipation efficiency.

02 Weight: Titanium is Approximately 60% Heavier Than Aluminum

The second crucial factor is weight.

Titanium has a density of approximately 4.5 g/cm³, while pure aluminum has a density of about 2.7 g/cm³, making titanium about 67% heavier than aluminum.

Even considering that the actual density of the aluminum alloy frame used is slightly higher than pure aluminum, titanium is still about 60% heavier than aluminum alloy.

For frames of the same volume, the titanium version is significantly heavier.

Apple has taken note of complaints from iPhone 16 Pro Max users regarding the device's weight.

After switching to aluminum alloy, the iPhone 17 Pro achieves a noticeable weight reduction within a similar form factor.

The weight saved is then reallocated to another critical area: a larger battery.

The iPhone 17 Pro Max weighs 231 grams. Had titanium been used, it would have approached the weight of a half-kilogram device.

This reflects Apple's trade-off: rather than having users hold a heavier but more premium-feeling metal, it opts for a lighter phone with an additional two hours of battery life.

03 Cost and Mass Production: Titanium's Yield Rate Challenges

Titanium also presents a challenge that Apple is reluctant to discuss openly: it is extremely difficult to process.

Titanium is complex to machine, slow to produce, and results in high material waste.

According to data from Aibang Polymer, the overall yield rate for titanium alloy phone frames is about 30%-40%, significantly lower than the 80% yield rate for aluminum alloy frames.

This means that for every 100 titanium frames produced, 60 to 70 are defective, effectively doubling the cost.

In contrast, the mature processes for aluminum alloy can reduce production costs by 40%. For Apple, which ships 200 million devices annually, every percentage point difference in yield rate translates to substantial financial losses.

Aluminum alloy's advantage in large-scale automated production is something titanium cannot match in the short term.

04 Environmental Protection: Aluminum's Carbon Footprint is One-Third of Titanium's

Apple has committed to achieving carbon neutrality across its entire value chain by 2030, encompassing its supply chain and the full product lifecycle.

Aluminum's carbon footprint is only one-third that of titanium, and its recycling infrastructure is much more developed.

On the newly released iPhone 18 Pro, Apple uses 85% recycled aluminum, with the entire device containing 40% recycled materials.

Image Source: Internet

This recycled aluminum comes from old iPhones disassembled by Apple's own recycling robot, Daisy, creating a closed-loop system.

Titanium's recycling infrastructure is nowhere near as developed, and recycling titanium waste requires significantly more energy.

Apple is also developing a low-temperature aluminum recycling process that can purify aluminum from scrap aluminum alloy at temperatures as low as 125°C, far below the high temperatures required by traditional smelting.

If this technology is implemented, aluminum's environmental advantages will become even more pronounced.

05 The Trade-Offs of Aluminum Alloy: Scratches and Paint Chipping

Aluminum alloy is not without its drawbacks.

The most immediate issue is its low hardness.

Aluminum alloy has a Mohs hardness of about 2.75, much lower than titanium's 6.0. In daily use, keys, sand, and desktop debris can easily scratch the frame.

According to multiple media reports, after the iPhone 17 Pro's release, the Starry Orange color option exhibited noticeable paint chipping, primarily concentrated on the aluminum alloy frame.

Some users reported that after about a month of normal use with a protective case and no exposure to sunlight, the orange color on the aluminum frame and camera area gradually faded to pink.

Apple's response has been to improve its anodizing process and color optimization.

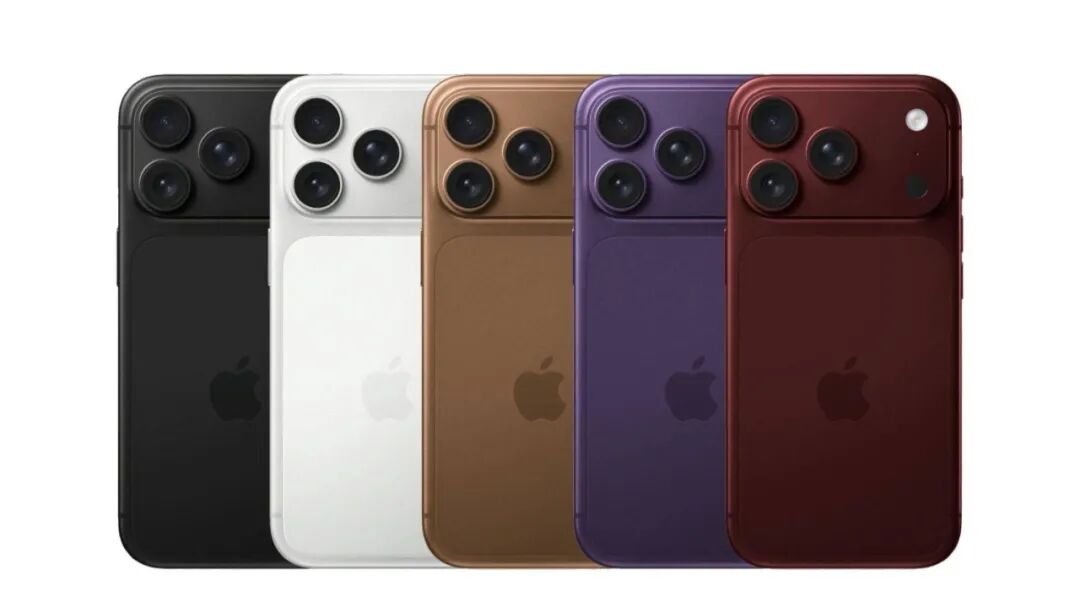

The advantages of aluminum in anodizing treatment have allowed the iPhone 17 Pro to introduce new color options like Deep Blue and Bright Orange, whereas titanium's process limitations restrict its color vibrancy.

06 Is This a Step Backward?

Apple's material choices have never been about which is more premium, but rather which is more suitable.

The iPhone 15 Pro used titanium because chip power consumption was manageable at the time, and heat dissipation pressure was not as high. Titanium's feel and strength were better selling points.

The iPhone 17 Pro reverted to aluminum alloy because AI computing power and high-load scenarios have made heat dissipation the top priority, and aluminum's thermal conductivity advantages have become irreplaceable.

Image Source: Internet

Apple has not abandoned titanium.

The iPhone Air and the first foldable iPhone Duo continue to use titanium because the ultra-thin and foldable form factors require material strength far more than heat dissipation.

According to leaks, Apple is also developing an improved titanium alloy and liquid metal, aiming to address titanium's poor thermal conductivity while maintaining its strength advantages.

Once that material is mature, the Pro series may switch back to titanium.

There is no single "best" material—only the most optimal choice for a given context.

Apple's use of aluminum is because, in its 2026 product definition, heat dissipation and weight are more important than feel. #ApplePhone #AluminumCase
