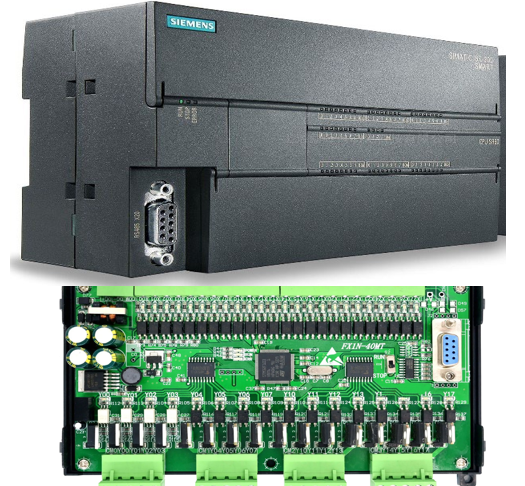

A Programmable Logic Controller (PLC) is an industrial control device developed on the basis of electrical control technology and computer technology, gradually evolving into a microprocessor-centric system that integrates automation technology, computer technology, and communication technology. Leveraging its high reliability, flexibility, and ease of programming, PLCs have rapidly become a cornerstone in industrial control systems. The emergence of PLCs has significantly enhanced the level of industrial automation, making production processes more efficient, flexible, and reliable.

In PLCs, the primary function of optocouplers is electrical isolation. PLC input signals often originate from various sensors and switches, such as temperature sensors, pressure sensors, and limit switches, which may be subject to noise and interference. Directly connecting these input signals to the PLC could adversely affect the control system. Optocouplers transmit information via optical signals, achieving electrical isolation between the input and output terminals, effectively preventing external interference from impacting the PLC system and enhancing system stability and reliability.

Optocouplers are widely and diversely applied in PLCs. Transistor optocouplers, optorelays, high-speed optocouplers, gate drive optocouplers, and IPM interface optocouplers are required for programmable controllers. When selecting optocouplers, in addition to considering their type, attention must also be paid to their electrical characteristics, such as input/output voltage withstand capability, response time, and isolation voltage.

Recommended Optocoupler Models:

1. Transistor Optocouplers: QX81x, QX101x, QX35x, QX3Hx, QX85x;

2. High-Speed Optocouplers: QX6N13x, QXM6xx, QX053x, QX063x;

3. Optorelays: QX2xx, QX17x;

4. Gate Drive Optocouplers: QX314, QX34x, QX350, QX31xx;

5. IPM Interface Optocouplers: QX48x, QX450x, QXM48x;

Primary Roles of Optocouplers in PLCs:

1. Input Signal Isolation: PLC input signals often come from various sensors and switches, which may contain noise and interference. Optocouplers provide electrical isolation, effectively preventing external interference from impacting the PLC system and protecting sensors and controllers. They can isolate temperature sensor signals, preventing noise interference and ensuring accurate reception and processing of temperature data by the PLC system.

2. Output Signal Isolation: PLC outputs are typically used to control actuators and equipment such as motors, valves, and motors. Optocouplers ensure accurate transmission of control signals through electrical isolation, preventing electrical interference from loads from damaging or interfering with the PLC system.

3. Signal Conversion: In some cases, PLC input and output signals may need to interact with devices at different voltage levels. Optocouplers can serve as signal converters, transforming signals of different voltage levels into compatible ones to meet system requirements. For instance, in the interface circuit between a PLC and an analog input/output module, optocouplers can convert digital signals from the PLC into analog signals or vice versa, enabling signal compatibility and transmission.

4. Fault Isolation and Protection: By promptly detecting and isolating fault signals, PLC systems and related equipment can be protected from damage, enhancing system reliability. For example, in PLC overload protection circuits, optocouplers can detect current overload signals and cut off power upon detection, protecting motors and the PLC system from damage.

The application of optocouplers not only improves the stability and reliability of PLC systems but also aids in simplifying system design and maintenance, reducing failure rates, and significantly enhancing industrial automation levels, making production processes more efficient, flexible, and reliable. Selecting suitable optocoupler models and applying them reasonably in PLC systems will effectively improve control system performance and efficiency.
