In today's industrial manufacturing landscape, where efficiency and precision reign supreme, businesses are actively seeking advanced tools to meet complex measurement demands. As a seasoned provider of laser alignment and geometric measurement services, Easy-Laser, with over 25 years of expertise in laser measurement technology, has introduced numerous innovative solutions to the market. Its array of laser transmitters spans multiple domains, including geometric measurement, shaft alignment, and pulley alignment, and has garnered widespread recognition for their outstanding performance and versatility. Recently, the company delved into detail about its diverse laser transmitters—XT20, XT22, XT24, and a specialized pulley laser transmitter—along with their primary applications, aiming to aid more enterprises in adopting this efficient and precise measurement tool.

Four Cornerstones of Laser Measurement

At the heart of any measurement system lies the laser transmitter, which emits a stable and precise laser beam. This beam acts as an invisible, straight ruler, setting the stage for precise measurements. Different measurement applications necessitate distinct types of laser transmitters to support various intricate measurement needs.

The swift and straightforward nature of laser measurement hinges on the synergy of four core components: firstly, the laser transmitter, responsible for emitting a stable and accurate laser beam; secondly, the receiver, tasked with capturing laser signals; thirdly, a tailored tooling bracket to ensure the system's stability and precision; and finally, measurement software, vital for data processing and intuitive result display.

○ XT20 and XT22: Versatile Transmitters with Rotatable Laser Heads

These transmitters adeptly handle a myriad of geometric measurements, including straightness, flatness, and perpendicularity. The rotatable laser head projects a 360° laser plane parallel to the object being measured, while the XT22 can tilt the laser beam 90° relative to the scanning surface for perpendicularity measurements. The electronic level facilitates prompt feedback, minimizing error risks.

Both transmitters seamlessly integrate with the XT Alignment application, enhancing usability and offering several benefits. The app also alerts users to temperature fluctuations and vibrations that might impact measurement accuracy, providing step-by-step guidance during equipment measurement and adjustment.

○ XT24: For Measuring Straightness and Other Hole Center Parameters

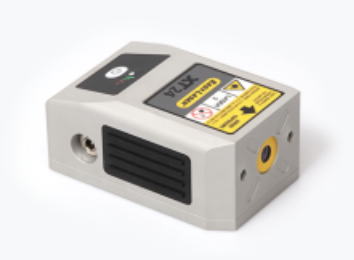

Complementing the XT20 and XT22, Easy-Laser also presents the XT24 laser transmitter. Primarily used for measuring the straightness of hole centerlines and propulsion drive lines, it boasts a measurement range of up to 40 meters and includes versatile brackets. Utilizing fiber-coupled laser diodes, it ensures high measurement accuracy.

○ Pulley and Belt Pulley Alignment Laser Transmitter

Designed for belt or chain drive alignment, this transmitter is mounted on one pulley, with the detector placed on the other. It generates a laser plane parallel to the reference pulley, and the detector reads the position relative to this plane, displaying offset and angle values in real-time. This simplifies the alignment of adjustable machines. By connecting the detector to an external display (like a smartphone), users can monitor alignment in real-time at the adjustment site, enhancing convenience.

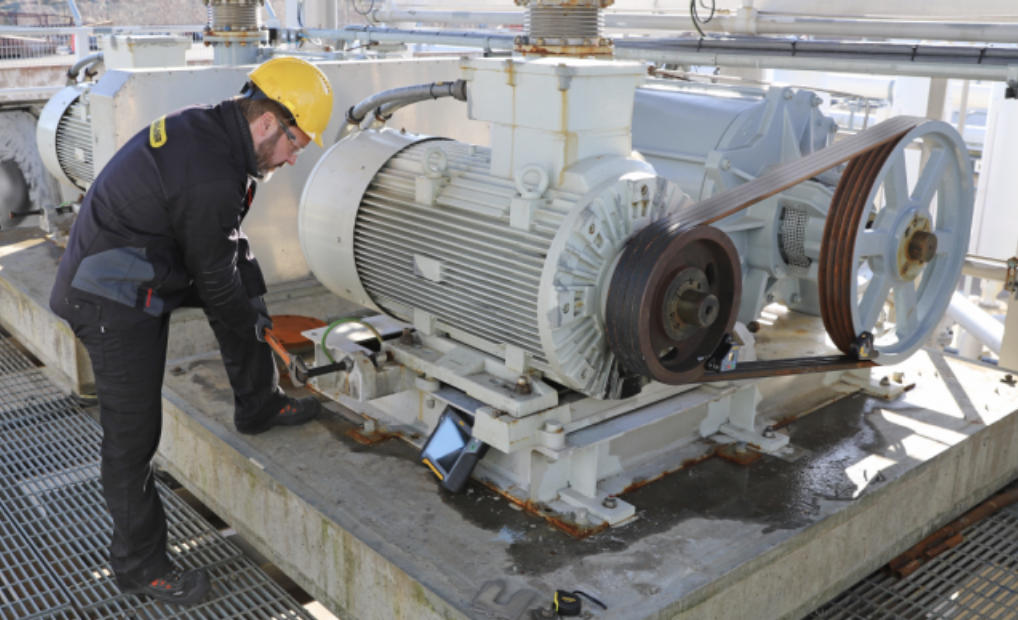

Transmitters and Detectors Mounted on Pulleys with Magnets

Application Examples of Laser Transmitters

In practical applications, Easy-Laser^®'s laser transmitters have showcased exceptional performance, evidenced by:

○ Using XT22 for Machine Base Flatness Measurement: With its rotatable laser head and extensive measurement range, the XT22 adeptly handles diverse, complex measurement scenarios.

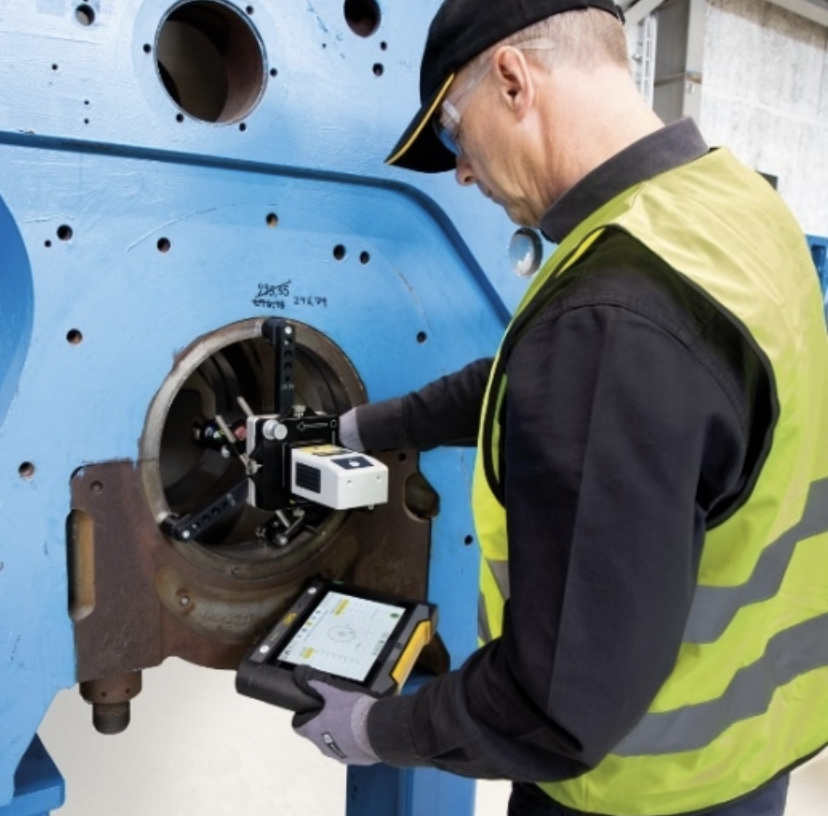

○ Utilizing XT24 for Hole Alignment: In hole alignment, the XT24 offers a reliable solution, thanks to its high precision and extended measurement range.

○ Pulley Alignment: With laser transmitters and detectors, users can effortlessly achieve pulley alignment, enhancing work efficiency.

Easy-Laser^®'s laser transmitters are increasingly pivotal in industrial measurement due to their precision, efficiency, and flexibility. Whether for geometric measurement, straightness measurement, or transmission alignment, Easy-Laser^® offers reliable solutions. For laser transmitters tailored to your specific measurement needs, reach out to Easy-Laser^®, visit the Chinese official website at easy-laser.cn, or contact the Chinese distributor, Beijing Fantech Instruments Co., Ltd.

With the relentless advancement of industrial manufacturing, the demands on measurement tools are escalating. Leveraging its professional laser measurement technology and diverse product lineup, Easy-Laser^® continues to spearhead trends in the industrial measurement domain, furnishing more enterprises with efficient and precise measurement solutions.
