U.S. Patent No. US 12,636,684 B1

Tesla's 'Lens Cleaning System': A Comprehensive Approach to Automatic Dirt Detection, Cleaning Fluid Dispensing, and Scraping

"Tesla has recently secured a U.S. patent for an innovative automatic camera lens cleaning system designed for vehicles. This system integrates mechanical wiping, liquid dispensing, and a controller that continuously monitors image quality in real-time, mimicking the functionality of the human eye. A testament to first principles engineering." —— @niccruzpatane on X

"Tesla has obtained a patent for a self-cleaning camera lens system that can detect dirt, dispense cleaning fluid, and employ a compact wiper to clear the lens, ensuring a consistently clear view for the camera. This document details a U.S. patent titled 'Lens Cleaning System,' owned by Tesla, Inc., which was issued on May 26, 2026, bearing patent number US 12,636,684 B1. The invention seamlessly blends software-based detection, liquid dispensing, and a mechanical wiper. Initially, the system assesses whether debris is present on the lens surface. Subsequently, it can dispense liquid onto the lens. Finally, the wiper blade moves horizontally to eliminate the debris." —— @CernBasher on X

The Challenge Addressed by the Patent

Camera lenses are susceptible to obstruction from various elements such as rain, mud, dust, oil, snow, and insect residue. When a lens becomes dirty, the performance of autonomous driving assistance systems, robots, or any device relying on visual data deteriorates. Conventional solutions, including fixed air ducts or hydrophobic coatings, offer limited effectiveness against stubborn contaminants and lack the capability to actively evaluate the extent of contamination.

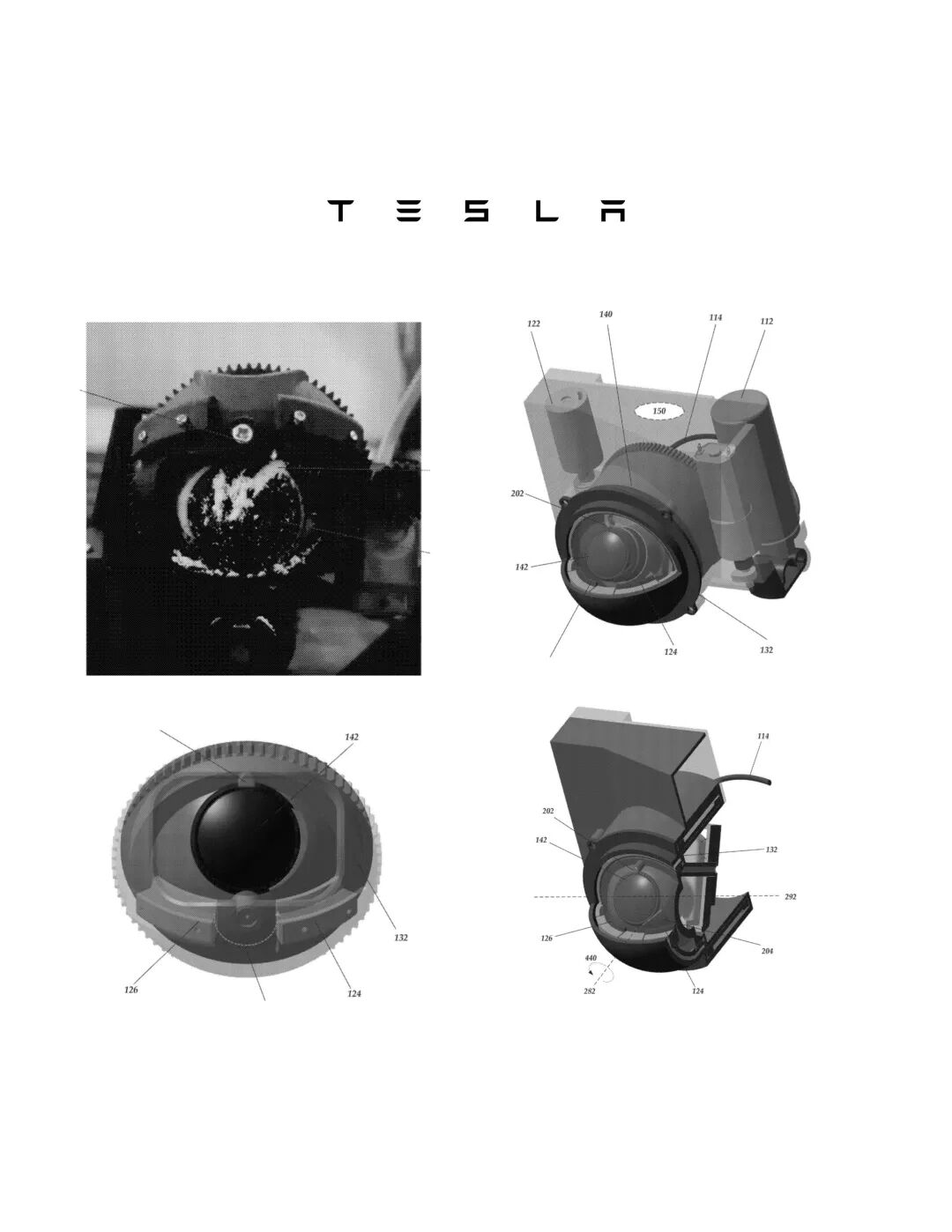

System Components (As per Patent Specifications) The system comprises:

Camera module and lens – The optical components requiring cleaning.

Liquid storage and dispensing unit – A reservoir, nozzle, or piping system capable of dispensing water-based, alcohol-based, or surfactant-containing cleaning fluids.

Mechanical wiper blade – Moves horizontally to physically scrape the lens surface clean.

Drive motor and controller – Powers the wiper's back-and-forth motion and controls the timing of fluid dispensing.

Image quality analysis module – Utilizes images captured by the camera to assess in real-time whether the lens is obstructed and the nature of the dirt present.

Operating Logic

The system does not engage in periodic, indiscriminate cleaning but operates on a closed-loop cycle of "contamination detection → triggering → dispensing → wiping → resetting." The controller gauges the lens's cleanliness by analyzing the loss of high-frequency components, diminished contrast, or local distortions in the image. When cleaning is deemed necessary, it first dispenses an appropriate amount of cleaning fluid, then drives the wiper blade across the lens surface, and finally returns the wiper to its standby position. After cleaning, the image quality is reassessed, and the process is repeated if necessary.

Types of Cleaning Fluids Specifically Mentioned in the Patent

The cleaning fluid can vary based on the usage scenario and environment, encompassing water, alcohol-based liquids, oil-based liquids, surfactants, or other cleaning solutions. The system is designed to accommodate different formulations to adapt to various conditions, such as low temperatures, oil stains, or insect residue.

Practical Significance

For autonomous driving or robotic systems, dirty lenses constitute a physical "perceptual blind spot." This patent introduces a compact, built-in self-cleaning mechanism that shifts the responsibility for cleaning decision-making from manual inspection to the system itself. This helps mitigate visual degradation or misjudgments caused by dirty lenses and enhances the system's reliability in all weather conditions.

Information Source: Publicly accessible patent US 12,636,684 B1 titled "Lens Cleaning System" from the United States Patent and Trademark Office (USPTO), with Tesla, Inc. as the patentee. Relevant public summaries and specifications. Quotes from X platform users @niccruzpatane and @CernBasher are reproduced verbatim. This article provides an objective technical overview and does not contain unpublished data or subjective embellishments.
